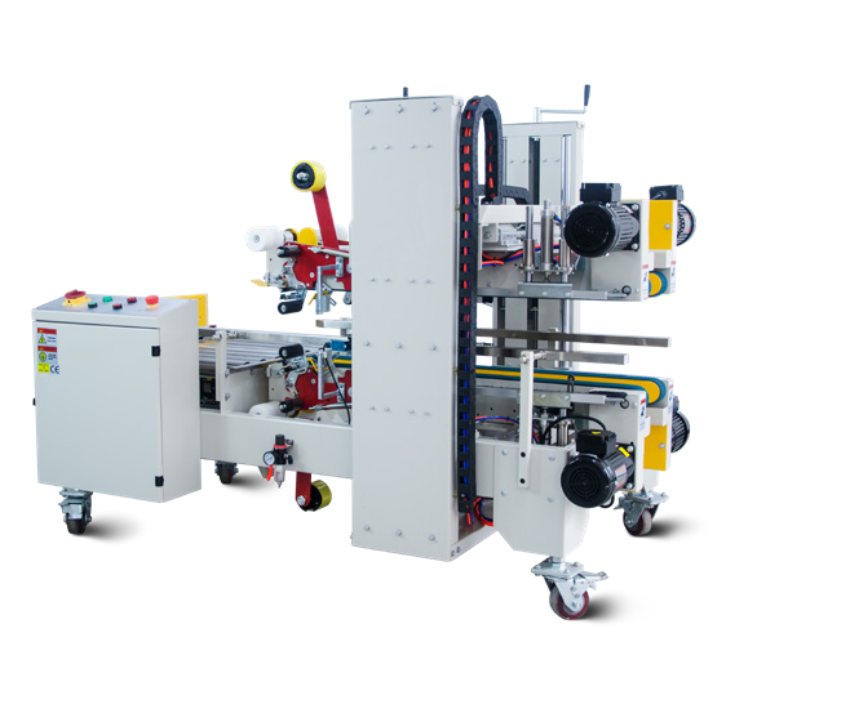

Carton sealing machine FPG-500

The semi-automatic carton corner sealer applies adhesive tape at the interface between the top and bottom surfaces of the carton and the side surfaces. First the tape is applied bottom and top, then it is pressed against the sides. The carton is driven by belts located at the top and bottom, ensuring smooth operation without interference. Simple manual adjustment ensures quick changeover to a new size and high productivity. The sealer is ideal for lightweight packaging, saves costs and provides an increase in production efficiency. The machine can be used in most industries, e.g. food packaging, household chemicals, white goods, toys, electronics. The solution is aimed at users with high requirements for product protection inside the packaging.

Features
Sealing four corners in one operation, Control using a PLC, Quick manual adjustment of carton height and width, Sealing from the top and bottom with the possibility of switching off, Low energy consumption, Ability to work independently or in line with other machines.

FPG-500 specifications
Model	Sealing	Drive belts	Size adjustment	Conveyor speed	Performance up to	Adhesive tape width	Compression 0.6 (MPa)	Working height
FPG-500	edges	top and bottom	manual	20m/min	6 pieces/min	48/60/75 mm	200 Nl/min	600 +/- 150 mm
